Introduction
The ATmega328P microcontroller and the Arduino Pro Mini are different in their scope, so comparing them requires some context. The ATmega328P is a standalone microcontroller chip, while the Arduino Pro Mini is a development board that includes an ATmega328P chip.
If you need a highly customized, cost-effective, and power-efficient solution with maximum control over your design, the ATmega328P microcontroller offers several advantages over using an Arduino Pro Mini. However, if you prefer ease of use, a pre-built platform for quick prototyping, and don’t need deep customization, the Arduino Pro Mini may be more convenient.
Here’s a breakdown of the advantages of using an ATmega328P directly over using an Arduino Pro Mini:
- Cost Efficiency:
– ATmega328P: Buying just the ATmega328P chip is cheaper than buying an Arduino Pro Mini board, especially if you’re building multiple units. This is ideal for mass production or projects where cost is a significant concern.
– Arduino Pro Mini: While relatively low-cost, it still includes additional components like the voltage regulator, capacitors, and headers, which adds to the cost.
2. Size and Customizability:
– ATmega328P: The chip can be used in custom PCB designs, allowing for more compact and tailored circuits. You can exclude unnecessary components (e.g., the voltage regulator) to save space and power.
– Arduino Pro Mini: Although small, it includes components that you may not need, which can limit customization and increase the physical footprint.
3. Power Consumption:
– ATmega328P: When used standalone, it allows for greater control over power management. You can put the chip into various power-saving modes (e.g., sleep mode) and remove unnecessary components, reducing power consumption to the bare minimum.
– Arduino Pro Mini: It has built-in components like a voltage regulator that consume additional power, making it less efficient in ultra-low-power applications.
4. Flexibility in Design:
– ATmega328P: You can design your circuit exactly as needed, including specific power supplies, crystal oscillators, and other peripherals, offering greater flexibility in your designs.
– Arduino Pro Mini: The board layout is fixed, which may not be ideal for all applications, especially when custom PCB designs are necessary.
5. Breadboarding and Prototyping:
– ATmega328P: The chip can be directly used on a breadboard for prototyping, making it easier to test in minimal configurations.
– Arduino Pro Mini: It’s designed for prototyping but requires headers or jumpers for breadboarding, which adds some complexity.
6. Manufacturing and Production:
– ATmega328P: If you’re moving from prototype to production, using the ATmega328P chip allows you to create custom PCBs for your product, which can be manufactured more efficiently.
– Arduino Pro Mini: More suited for prototypes or small-scale projects, less optimal for mass production.
7. Lower Startup Time:
– ATmega328P: Using the chip directly can potentially have a faster startup time since you can control all aspects of the circuit, including the power-up sequence.
– Arduino Pro Mini: May have additional delays due to onboard components and bootloader.
8. No Bootloader Overhead:
– ATmega328P: You can program the chip directly using ICSP (In-System Programming), bypassing the Arduino bootloader. This can save memory space and speed up the startup.
– Arduino Pro Mini: Uses the Arduino bootloader, which takes up some flash memory and adds a slight delay during startup.
Programming An AT Megaa328P
Programming the ATmega328P directly using ICSP (In-System Programming) bypasses the Arduino bootloader and gives you more control over the microcontroller. Here’s a step-by-step guide on how to do this:
What You Need:
1. ATmega328P Microcontroller
2. ICSP Programmer: In this tutorial we use either an Arduino Uno or Arduino Nano configured as an ICSP programmer. Configuration instructions are below.
3. Arduino IDE
4. 10 uf capacitor
Setting Up The Arduino Board As ICSP
1. Open the IDE.
Go to Files > Examples > Arduino ISP and upload that to the Arduino Board.
2. Connect the Arduino’s pins to the ATmega328P as follows
Arduino Pin 12 to ATmega328P Pin 18
Arduino Pin 11 to ATmega328P Pin 17
Arduino Pin 13 to ATmega328P Pin 19
Arduino Pin 10 to ATmega328P Pin 1
Arduino 5v to ATmega328P Pin 7
Arduino GND to ATmega328P Pin 8
To prevent the Arduino from resetting when programming the ATMega328P, place a 10uf capacitor between the RESET and GND pins on the Arduino board. The negative leg of the capacitor connects to GND.
Loading The Program On The ATmega328P
1. Open the IDE
2. Go to Tools > Programmer and select “Arduino as ISP”.
3. Open the sketch that you want to load on the ATMega328P.
Note that the program must be coded for an ATMega. A program that is coded to work on an arduino board must be amened to work on the ATMega.

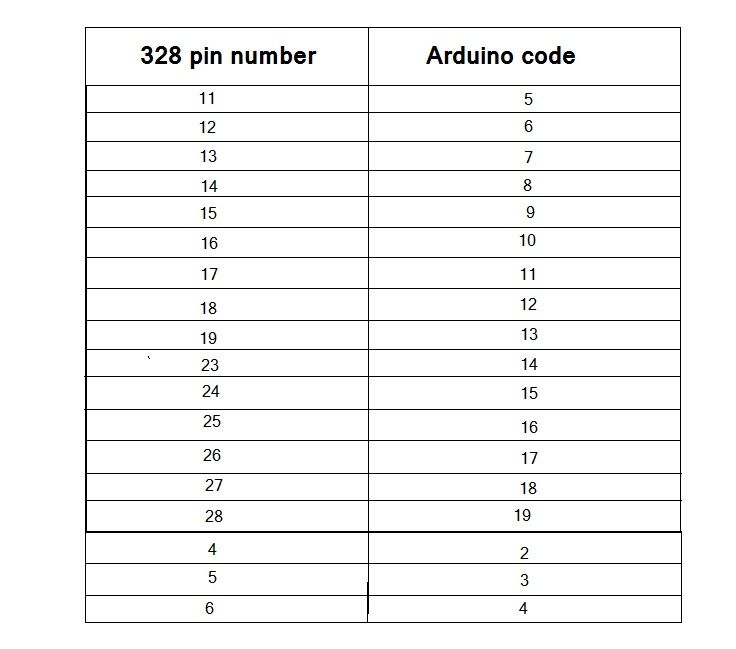

Here are the pin equivalents:
An Important Pitfall
In the Arduino IDE , pin number 5 means the fifth pin of the Arduino board not the fifth pin of 328 microcontroller.
It is actually 11th pin of the 328.
Since we are coding for a standalone 328, we’ve to put keen attention in accessing the I/O pins.
So, access 11th pin of the 328, we’ve to write in the code “5” instead of 11.
All the 18 I/O pins of 328 can be accessed like this.
4. Upload using Sketch > Upload Using Programmer.
